HYBRIDIZATION OVENS are used in research labs, molecular biology labs, and other labs to identify RNA, DNA, and proteins. They are used for nucleic acid and protein hybridizations, and are especially useful for Northern, Southern, and Western blots..
'
SPECIFICATIONS :
-
Interior Material – SS 304
-
Exterior Material - MS Powder Coated
-
Temperature Range: (5 °C above Ambient) to 90 °C
-
Observation: Viewing Glass Window is Provided
-
Temperature Control: By Digital Display with Microprocessor-Based PID Controller of Accuracy ± 0.5 °C Using PT – 100 Sensor
-
Carrier to Hold Bottles (6 Nos. of 60 mm Dia x 200 mm Length) Can Be Easily Placed or Removed from the Rotor Mechanism
-
One Bottle Can Be Taken Out Without Removing the Carrier
-
Carrier Rotates with Bottles Parallel to the Door at a Variable Speed of 2 – 15 RPM
| CAT. NO. | Outer Dimensions (L x D x H) mm | Inner Dimensions (L x D x H) mm | Volume (Ltrs) | Wattage (W) |
|---|---|---|---|---|
| HYB - 001 | 650 x 525 x 485 | 350 x 350 x 400 | 50 | 650 |

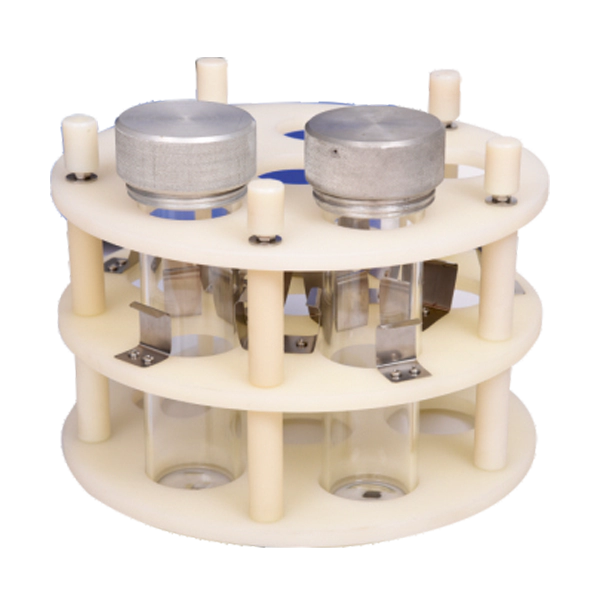

REMOVABLE HYBRIDIZATION BOTTLE CARRIER:
| CAT. NO. | Hybridization Bottle Dimension (mm) | Type of Bottle | Maximum Number of Bottles |
|---|---|---|---|
| HYB - 501 | 60 Dia x 200 Depth | Fabricated with Borosilicate Glass with Leak-Proof Aluminum Housing Screw Cap | 06 |
