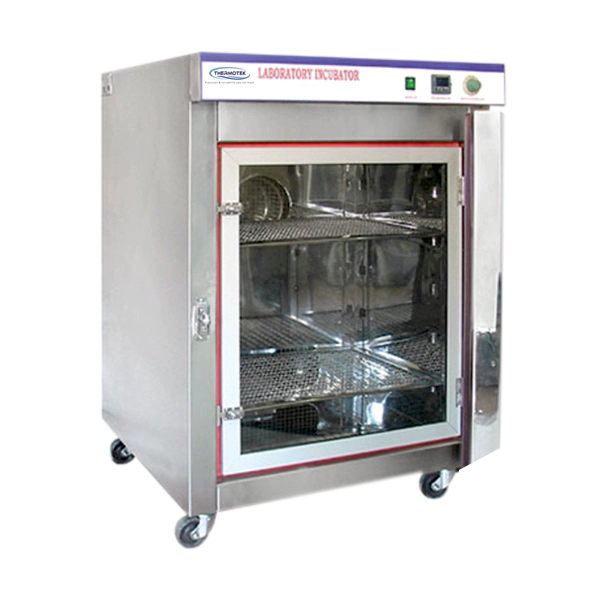

BACTERIOLOGICAL INCUBATOR

PDF Icon

Product Brochure

BACTERIOLOGICAL INCUBATORS are designed to serve a wide span of requirements, most useful for General Incubation, Excellent for usage in Microbiological Labs & more specifically to maintain optimal temperature conditions for growth of microbiological cultures in a controlled environment.

SALIENT FEATURES & TECHNICAL SPECIFICATIONS :

  • Double wall construction with Inner made of Stainless Steel – 304 Grade & Exterior Mild Steel with powder coat finish (STD Model) / Exterior Fully Stainless Steel with Dull Matt finish (GMP Model).

  • High density glass wool insulation between walls to prevent heat dissipation.

  • A transparent full-length Acrylic inner door is provided to have a clear inner view of the samples put in, without disturbing the thermal conditions inside the incubator.

  • A fully insulated door with sturdy S. S. hinges, S. S. Latch Handle lock, and gasket which acts as a perfect sealant.

  • Heating elements are made of high-grade Nichrome wire and placed on both sides of the unit.

  • Temperature Range: 5°C above ambient to 60°C.

  • Temperature controlled by Dual Display Microprocessor-based PID Temperature Controller & PT-100 Sensor with +/- 1.0 °C or better accuracy.

  • Forced Air Circulation System with motorized blower arrangement to maintain uniform temperature within the chamber.

  • Air ventilation is provided on the top/sides of the unit to remove heat gases and fumes.

  • Shelves are available with removable SS Rod shelves.

  • Operates on 230 Volts AC Single phase 50 Hz.

SAFETY FEATURES :

  • Capillary type Thermostat provided to take care of temperature overshoots & in case the PID Controlling system fails.

OPTIONAL ACCESSORIES :

  • Stand by refrigeration system (Except for 90 Liters.).

  • Electronic Digital Timer Range from 0 to 999 Minutes.

  • PC / Printer Interface.

  • Scanner with 4-point temperature and sensors and printer interface.

  • Servo Controlled Voltage Stabilizer.

  • 21 CFR Part 11 compliant software.

ORDERING INFORMATION FOR STD MODELS :
CAT. NO. Chamber Size (Inch) Chamber Size (CM) SHELVES(S S)
BAC/MS 002 14 X 14 X 14 35 X 35 X 35 2
BAC/MS 003 18 X 18 X 18 45 X 45 X 45 2
BAC/MS 004 18 X 18 X 24 45 X 45 X 60 3
BAC/MS 005 24 X 24 X 24 60 X 60 X 60 3
BAC/MS 006 24 X 24 X 36 60 X 60 X 90 3
ORDERING INFORMATION FOR GMP MODELS :
CAT. NO. Chamber Size (Inch) Chamber Size (CM) SHELVES(S S)
BAC/SS 002 14 X 14 X 14 35 X 35 X 35 2
BAC/SS 003 18 X 18 X 18 45 X 45 X 45 2
BAC/SS 004 18 X 18 X 24 45 X 45 X 60 3
BAC/SS 005 24 X 24 X 24 60 X 60 X 60 3
BAC/SS 006 24 X 24 X 36 60 X 60 X 90 3
