Product Brochure

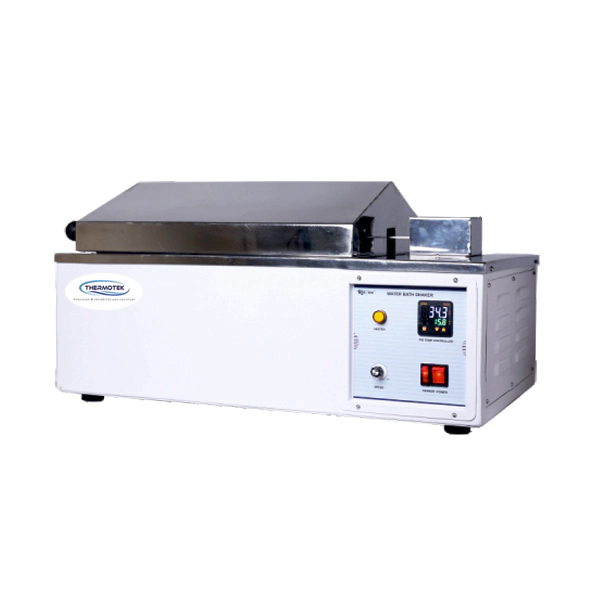

THE WATER BATH SHAKERS has wide applications in Biotechnology, Micro-Biology, Chemistry, Quality Control and other life sciences laboratories.
The Water Bath Shaker is based on the principle of constant shaking under highly controlled temp. Conditions generated through hot steam inside the chamber.
-
Body Material - MS Painted with Epoxy Powder.
-
Bath & Tray Material – Stainless steel 304
-
Temperature range ambient + 5 °C to 95 °C
-
Digital Display with PID Controller of Accuracy ± 1.0°C by using PT – 100 as Sensor
-
Water Drain Nozzle is fitted
-
Shaking Speed: Horizontal strokes & Orbital strokes (20 – 200) per min. (without load)
-
Supplied with SS Gabled Cover.
-
Electrically operated on 230V AC/ 50Hz
| CAT. NO. | Stroke Speed per min. | Type | Tank size L x D x H (In mm) | Tray size L x D x H (In mm) |
|---|---|---|---|---|
| WBS - 501 | Reciprocating (Horizontal) | 370 x 300 x 200 | 250 x 250 x 140 | 20 - 200 |
| WBS - 502 | Reciprocating (Horizontal) | 470 x 360 x 200 | 350 x 310 x 140 | 20 - 200 |
| WBS - 503 | Orbital | 450 x 425 x 200 | 335 x 335 x 15 | 20 - 200 |
Note : SS Lotus clamps for holding the flasks in the shakers to be order separately.
| CAT. NO. | Flask Capacity (ml) | No. of SS Lotus Clamps required for tray size 250 x 250 mm | No. of SS Lotus Clamps required for tray size 350 x 310 mm | No. of SS Lotus Clamps required for tray size 335 x 335 mm |
|---|---|---|---|---|
| SS CLAMP - 501 | 50 | 9 | 20 | 16 |
| SS CLAMP - 502 | 100 | 9 | 20 | 16 |
| SS CLAMP - 503 | 250 | 5 | 9 | 9 |
| SS CLAMP - 504 | 500 | 5 | 9 | 9 |
| SS CLAMP - 505 | 1000 | 2 | 4 | 4 |
| SS CLAMP - 506 | 2000 | 1 | 1 | 1 |
